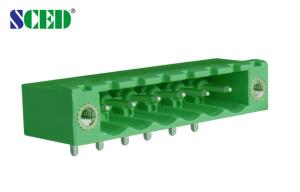

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles

Name: Male Sockets Plug In Terminal Block Pitch 508mm 300V18A 222 Poles
Brand: SCED
Price: 0.015 USD

China Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles wholesale

Brand Name : SCED

Model Number : TP508H-00VF

Certification : UL,CE,CUL,CQC and VDE etc.

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.015-0.032 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Type : Male part

Pitch : 5.08mm

Poles : 2-22 poles available

Current : 18A

Voltage : 300V

Plastic : PA66

Terminal : Brass

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles

Detailed product Description:

Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Level; □Double Levels; □Triple Levels

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/18		300/18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 18	400 / 18	500 / 18
Rated Surge Voltage KV	4	4	4
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.4
Pin Dimension mm	1.0 x 1.0

Applications:

Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medical Equipment and Military and so on.

Competitive Advantage:

Competitive price
Full range products for selection
OEM and ODM service
Stable high quality
