TD Series Through Panel Terminal Block

Name: TD Series Through Panel Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD180-01-C

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Terminal Block Connector,Terminal Block Connectors, PCB Connectors

Pitch : 21.0mm

Number Of Contacts : Any Poles Available

Wire Range : 20-1/0

Rated Voltage : 600V

Rated Current : 180A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Materials : PBT, COPPER, STEEL

Contact Now

Detailed product Description:

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm, 600V 180A
Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

TD Series Through Panel Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

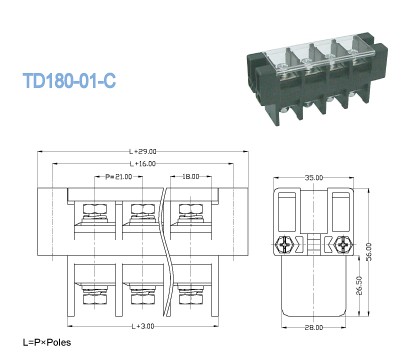

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 180	300 / 180	300 / 10
Wire Range AWG	20-1/0	20-1/0	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 180	800 / 180	1000 / 180
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	8
Material
Insulation Material / Inflammability Class	PBT/ UL94, V-0
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	14-18
Screw / Torque / lbf.in	M6 / 20-22

TD Series Through Panel Terminal Block

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
