In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

Name: In Sockets Plug In Terminal Blocks Pitch 750mm 300V 15A 2P16P Double Level
Brand: SCED
Price: 1 USD

China In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level wholesale

Brand Name : SCED

Model Number : TP508P-75-GY

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Type : Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Pitch : 7.50mm

Number Of Contacts : 2P-16P

Wire Range : 14-26

Rated Voltage : 300V

Rated Current : 15A

Color : Grey

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

■Single Level; □Double Levels; □Triple Levels

This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

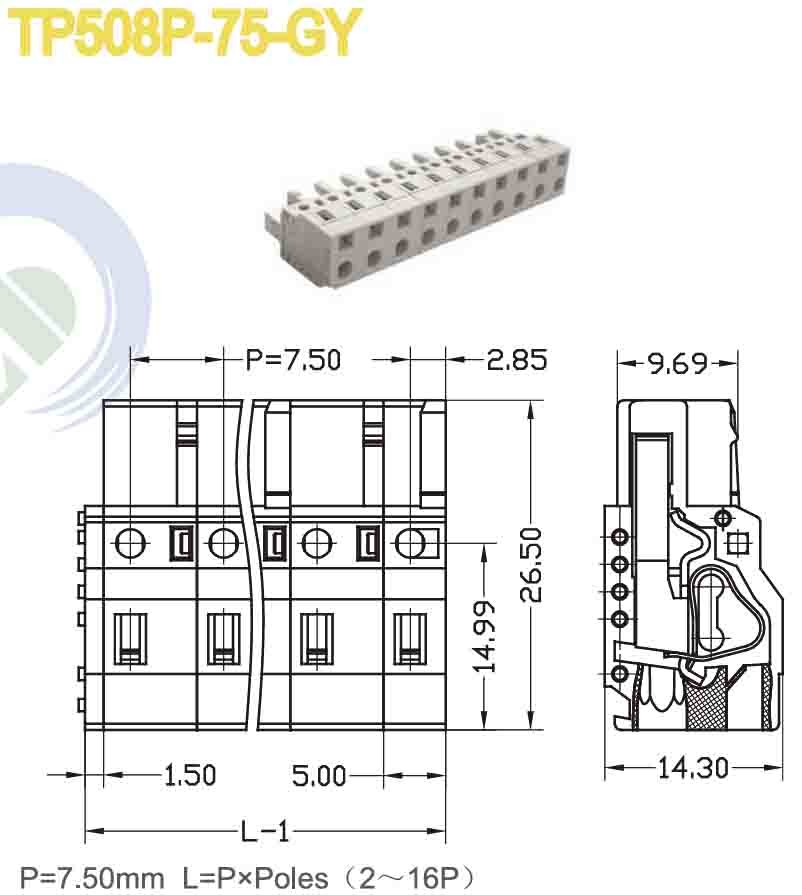

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 15
Wire Range AWG	14-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 15	320 / 15	630 / 15
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage	Stainless Steel
Contactor / Plating	Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm	10-11

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
