Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This header match with plug series: Online consultation
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

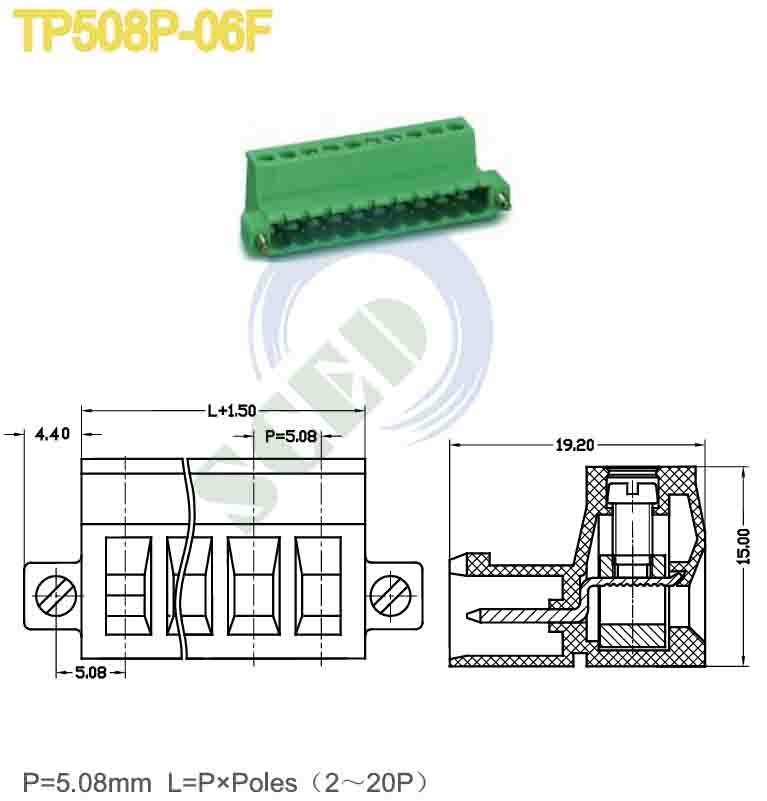

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 18 | | 300/10 |
| Wire Range AWG | 12-30 | | 12-30 |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 630 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm² | 2.5 |
| Material | |
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
| Clamp Cage / Plating | Brass / Nickel Plated |
| Contactor / Plating | Brass / Tin Plated |
| Screw / Plating | Steel / Zinc Plated |
| Other Data | |
| Stripping Length mm | 7 |
| Screw / Torque / lbf·in | M3 / 4.4-5.3 |
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
