Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block

  • 1
  • 2

Brand Name : SCED

Model Number : TB1100-13F-D1-C

Certification : UL, CE,CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Insulation Material : PBT

Voltage Rating : 600V

Operating Temperature : -40°C to +105°C

Number Of Contacts : 2P-16P

Wire Connection : Screw

Imflammability Class : UL94-V0

Current Rating : 30A

Wire Gauge : 10-22 AWG

Contact Now

Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block

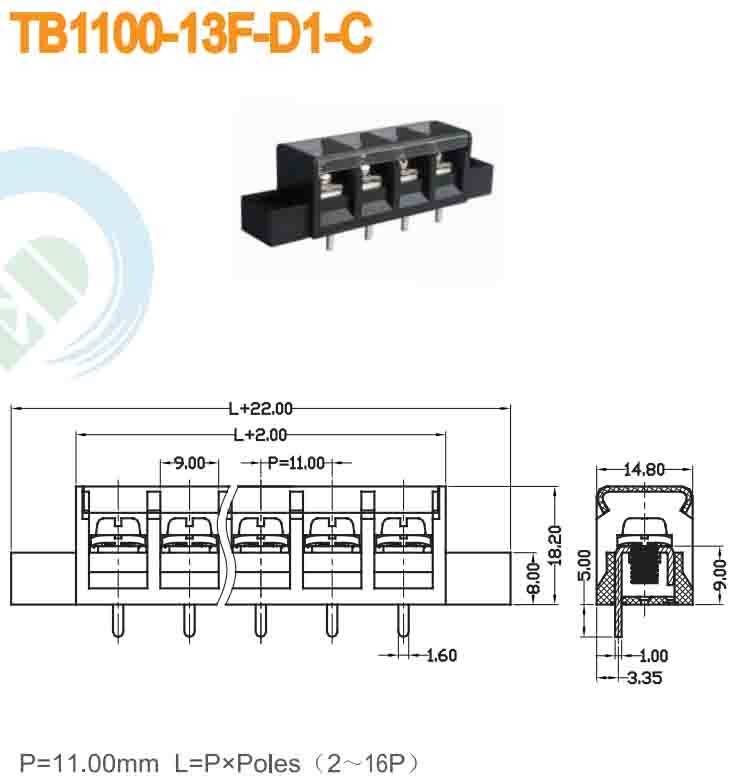

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30 600 / 30 600 / 5
Wire Range AWG 10-22 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 41 1000 / 41 1000 / 41
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ3.0
Stripping Length mm 10-12
Screw / Torque / lbf.in M4 / 10.6-13

Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block
