600V 30A Single Level Barrier Terminal Block Steel M4 Screw 11.00mm 2-18P

  • 1
  • 2

Brand Name : SCED

Model Number : TB1100-13-D1-C

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Levels : Single Level

Wire Inlet : Right angle wire inlet

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Pitch : 11.00mm

Number Of Contacts : 2P-18P

Wire Range : 10-22

Rated Voltage : 600V

Rated Current : 30A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

600V 30A Single Level Barrier Terminal Block Steel M4 Screw 11.00mm 2-18P

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

600V 30A Single Level Barrier Terminal Block Steel M4 Screw 11.00mm 2-18P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

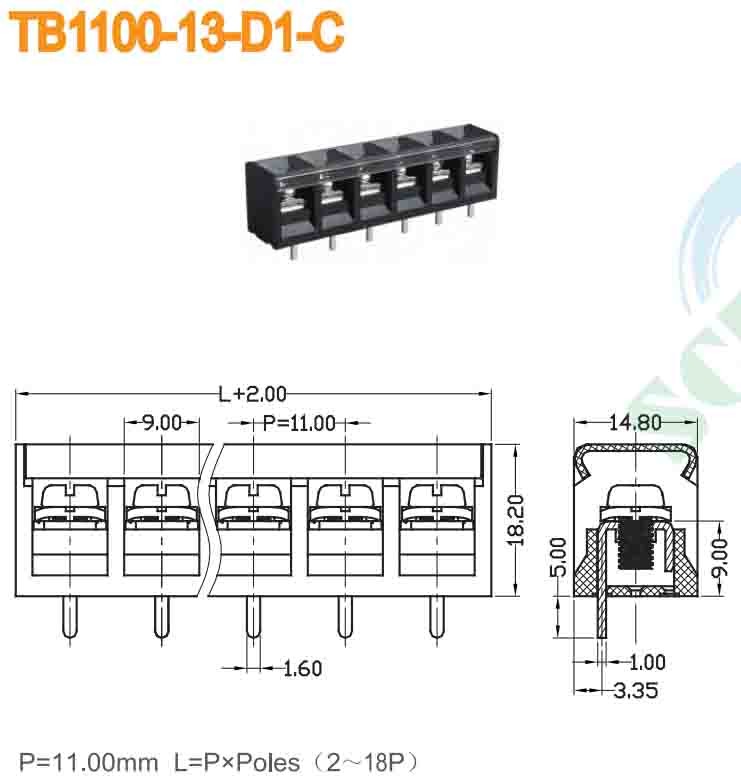

Parameter and Drawing Specifications:

UL Technical Data

B C D

Rated Voltage / Current V/A

600/ 30 600/ 30 600 / 5

Wire Range AWG

10-22 10-22 10-22

IEC Technical Data

Overvoltage Category

Ⅲ Ⅲ Ⅱ

Contamination Class

3 2 2

Rated Voltage / Current V/A

800 /41 1000 / 41 1000 / 41

Rated Surge Voltage KV

8 8 8

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ2.2

Stripping Length mm

10-11

Screw / Torque / lbf.in

M4 / 10.6-13

600V 30A Single Level Barrier Terminal Block Steel M4 Screw 11.00mm 2-18P

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
