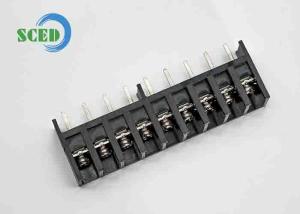

Barrier Terminal Block 10.00mm 600V 30A 4-18P 6mm2 Power Terminal Block

  • 1
  • 2

Brand Name : SCED

Model Number : TB1100-10-DN

Certification : UL, CE,CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Gold Plating : tin plated

Wire Gauge : 10-22 AWG

Levels : single Levels

Pitch : 10.00mm

Voltage Rating : 600V

Color : Black

Termination Style : Screw

Rated Connecting Capacity : 6 mm2

Features : Barrier Type, Removable Jumper

Plastic : PBT

Contact Now

Barrier Terminal Block 10.00mm 600V 30A 4-18P 6mm² Power Terminal Block

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30 600 / 30 600 / 5
Wire Range AWG 10-22 10 / 22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 10-11
Screw / Torque / lbf.in M4 / 10.6-13

Barrier Terminal Block 10.00mm 600V 30A 4-18P 6mm2 Power Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Barrier Terminal Block 10.00mm 600V 30A 4-18P 6mm2 Power Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Barrier Terminal Block 10.00mm 600V 30A 4-18P 6mm2 Power Terminal BlockBarrier Terminal Block 10.00mm 600V 30A 4-18P 6mm2 Power Terminal Block
