Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications

  • 1
  • 2

Brand Name : SCED

Model Number : TB1100-05

Certification : UL, CE, CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Pitch : 11.00mm

Number Of Poles : 10

Housing : PBT.UL94V-0

Type : Barrier

Voltage Rating : 600 V

Wire Connection : Screw

Pcb Mount : PCB Inserting and Soldering

Levels : Single Level

Number Of Levels : 1

Key Words : Screw clamp connector

Sample : free

Contact Now

Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block

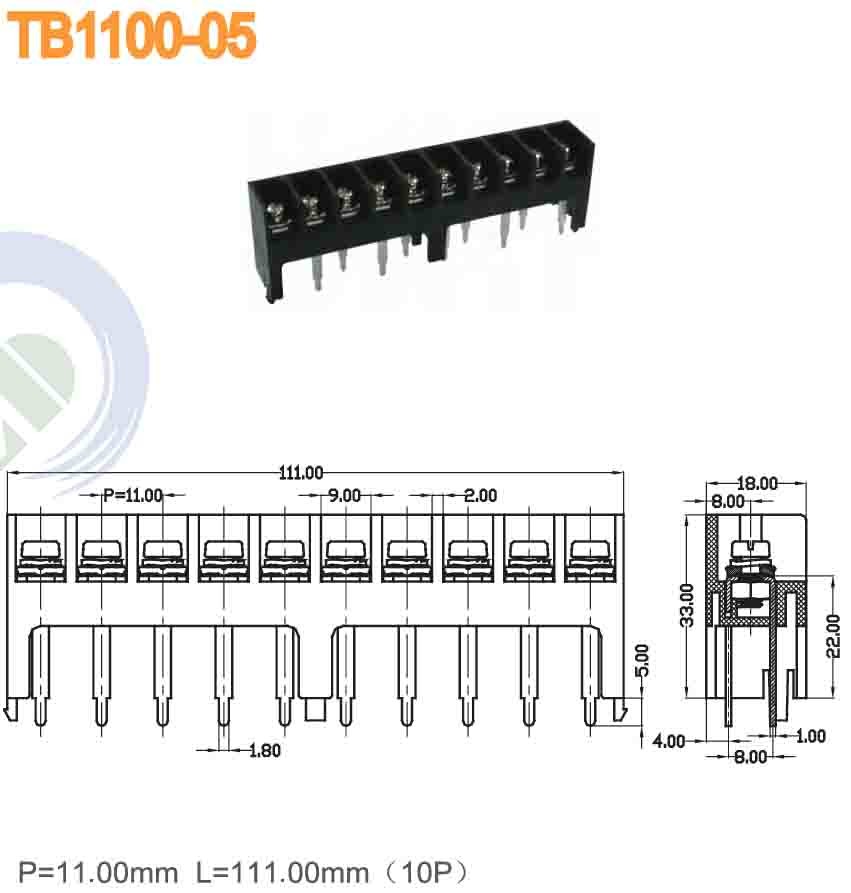

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30 600 / 5
Wire Range AWG 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-13

Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications
