300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

Name: 300V 30A 218P Pitch 1270mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
Brand: SCED
Price: 1 USD

China 300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications wholesale

Brand Name : SCED

Model Number : TB1100-04

Certification : UL, CE, CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Center Spacing : 11.10mm

Wire Connection : Cage Clamp

Rated Current : 30A

Number Of Levels : 1

Insulation Material : PBT

Voltage : 300V

Housing : PBT.UL94V-0

Torque : 10-13 lbf.in

Contact Now

Pitch 12.70mm 300V 30A 2-18P Power Terminal Block PBT Barrier Terminal Block

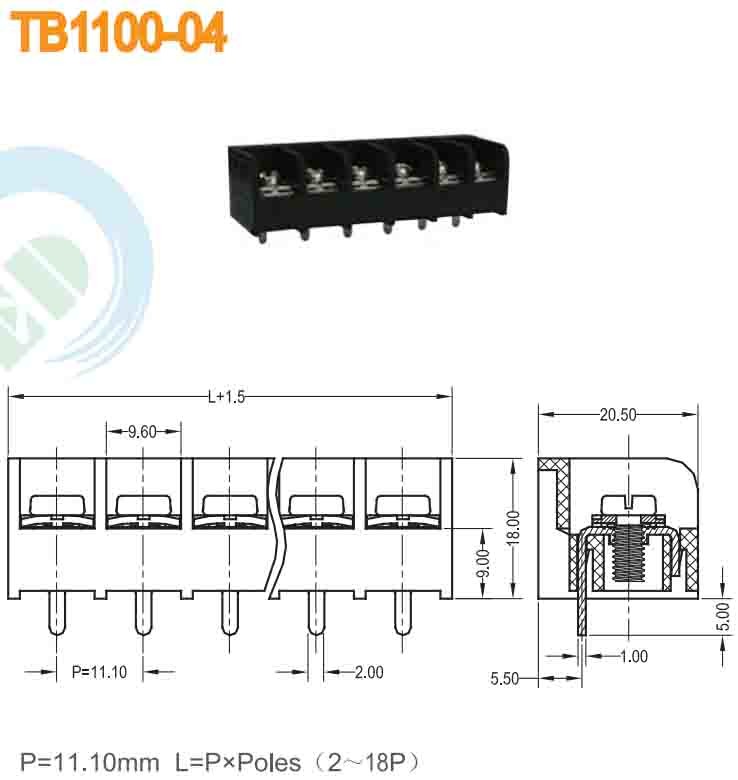

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 30		300 / 10
Wire Range AWG	10-22		10-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 41	800 / 41	1000 / 41
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.6
Stripping Length mm	9-10
Screw / Torque / lbf.in	M4 / 10-13

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
