250V 18A Double Levels Barrier Power Terminal Blocks with Pitch 11.00mm and Wire Range 12-24AWG

Name: 250V 18A Double Levels Barrier Power Terminal Blocks with Pitch 1100mm and Wire Range 1224AWG
Brand: SCED
Price: 1 USD

China 250V 18A Double Levels Barrier Power Terminal Blocks with Pitch 11.00mm and Wire Range 12-24AWG wholesale

Brand Name : SCED

Model Number : TB1100-02

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Pitch : 11.00mm

Wire Range : 12-24

Rated Voltage : 250V

Rated Current : 18A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Double Levels 250V 18A 11.00mm 4-16P 12-24AWG Barrier Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and
select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

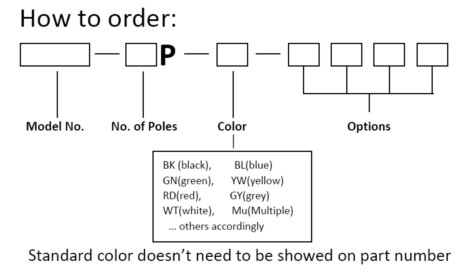

How to order:
250V 18A Double Levels Barrier Power Terminal Blocks with Pitch 11.00mm and Wire Range 12-24AWG

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

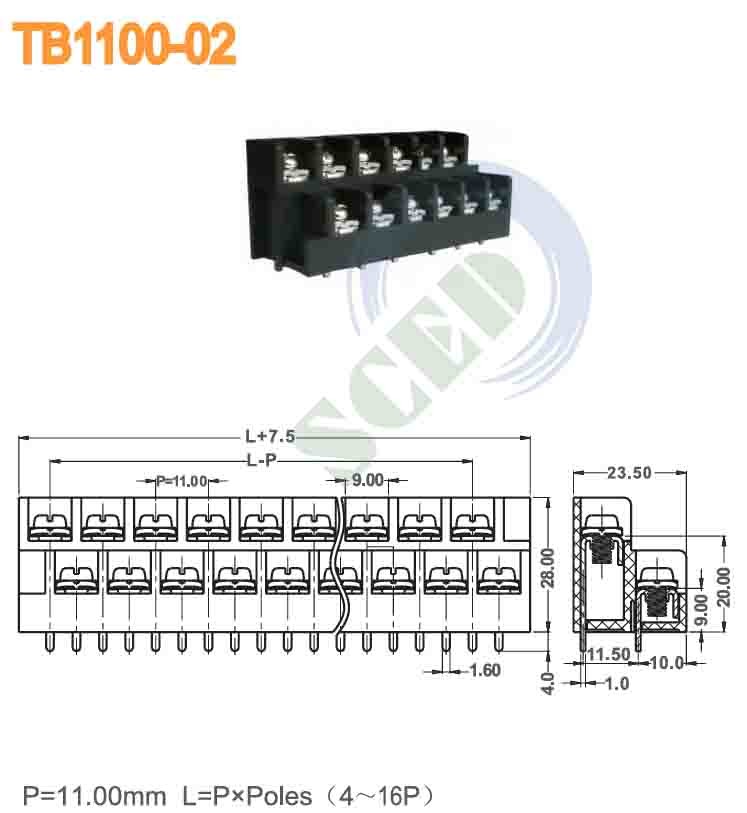

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	250/18		250/10
Wire Range AWG	12-24		12-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 24	800 / 24	1000 / 24
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.3
Stripping Length mm	9-10
Screw / Torque / lbf.in	M4 / 10-13
