80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated

Name: 80A 10001050mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated
Brand: SCED
Price: 0.087 USD

China 80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated wholesale

Brand Name : SCED

Model Number : AO-15/4J-N1

Certification : CE,UL etc.

Place of Origin : Suzhou,China

MOQ : 1000 Piece/Pieces

Price : USD 0.087-0.175 Per Pc

Payment Terms : T/T, L/C

Supply Ability : 10000000 Pole/Poles per Month

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Rated Current : 80A

Screw Material : Steel, Nickel Plated

Terminal Body : Brass, Tin Plated

Torque : 18 lbf.in

Insulation Resistance : Above DC500V, 500MΩ

Screw : M5

Rated Surge Voltage : No abnormal within 1 minute

Center Space : 10.00*10.50mm

Contact Resistance : Less than 8mΩ

Contact Now

80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories

Applications:

1.PCB, Frequency Converters, Server Site, Switch

2.Power Supply, Electric Lighting, Industry Control

3.Automation, Rail Transportation, Communication

4.Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Detailed product Description:

Brass Electrical Components PCB Terminal Accessories

Our products use good material to produce, such as high quality brass, copper and plating tin, zinc, nickel and so on.

After mounting on PCB, metal terminal accessoreis can be worked as a terminal block. Some simple metal parts accessories will work as the jumper and other assistant functions.

Competitive Advantage:

More than 13 years of experience
Strong R&D abilities
Stable high quality
Competitive price
More than 1000 models for selection
OEM and ODM service
Quick response and good service

Spec.:

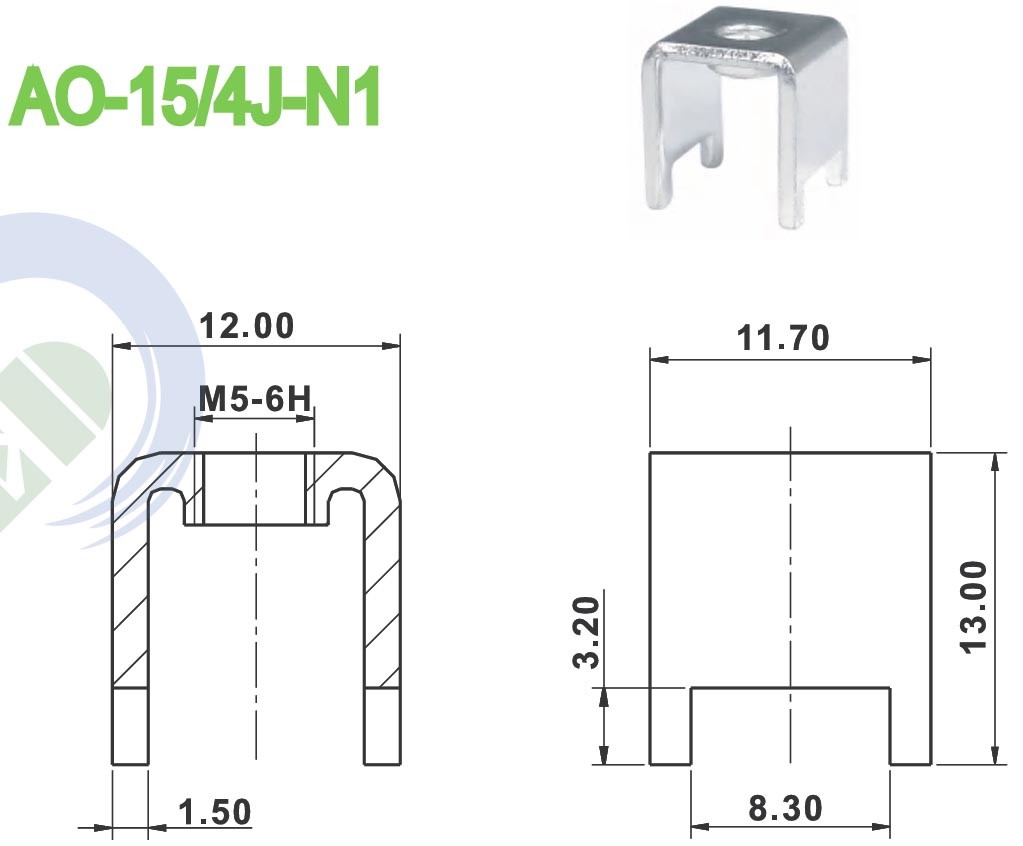

Model	AO-15/4J-N1
Technical Data
Center Space	10.00*10.50mm
Rated Current	80A
Screw	M5,Steel,Nickel Plated
Terminal Body	Brass, Tin Plated
Screw Torque	18 Ibf·in

80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated
