Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through

Name: Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TR-4N-01

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 200

Packaging Details : Standard Export Carton

Terminal Width : 6.20mm

Rated voltage/Currennt : 300V/15A

Housing : PA66/ UL 94V-0

Color : Grey

Wire Range : 12-28

Stripping Length : 9mm

Screw : M3/ Steel/ Zinc Plated

Clamp Cage : Brass / Nickel Plated

Contact Now

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through

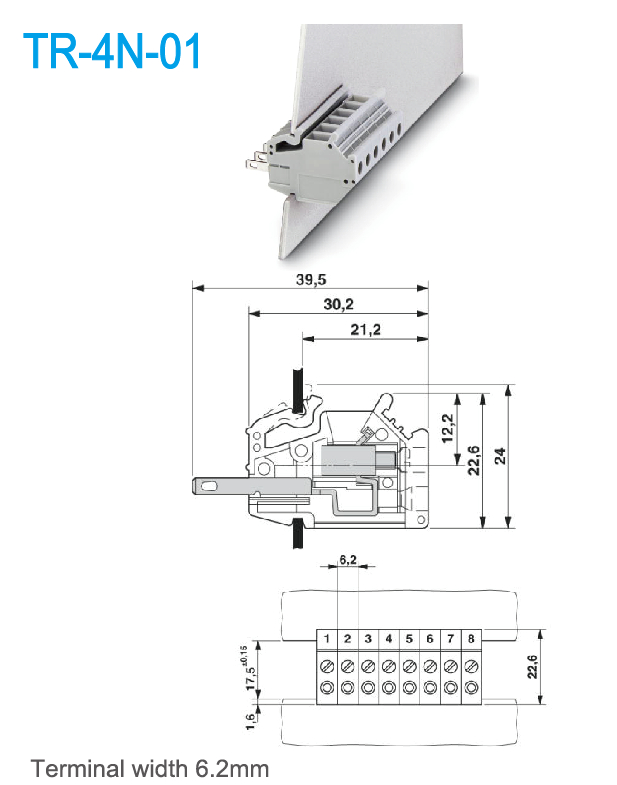

Photo Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 15		300 / 10
Wire Range AWG	12-28		12-28
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 17.5	400 / 17.5	630 / 17.5
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	9
Screw / Torque / lbf.in	M3 / 5.3-7

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
