Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

Name: Electrical Barrier Power Terminal Blocks Pitch 8255mm 300V 20A For PCB
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE,CQC

Model Number : TB825-01V

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

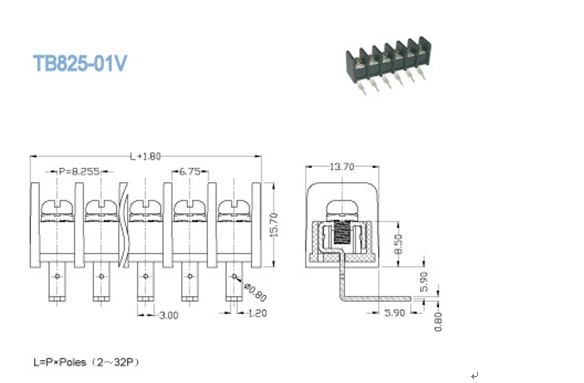

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 20		300 / 10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 32	400 / 32	630 / 32
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.6
Stripping Length mm	6-7
Screw / Torque / lbf.in	M 3 / 5-7

Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB
