300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P

Name: 300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 381mm 2P20P
Brand: SCED
Price: 1 USD

China 300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P wholesale

Brand Name : SCED

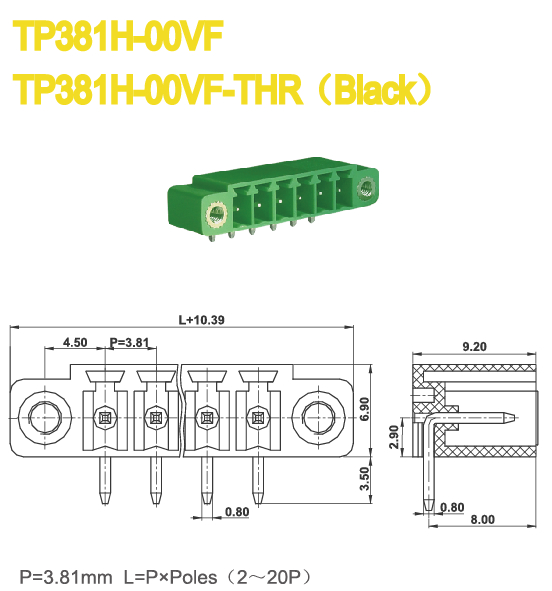

Model Number : TP381H-00VF

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Get latest price

Pitch : 3.81mm

Color : Green

Poles : 2-20 p

Material : PA66

Terminal : Brass

Key words : Pluggable male terminal

Contact Now

300V 8A Male Pluggable Terminal Block Vertical Wire Inlet Brass Terminal Pitch 3.81mm 2P-20P

Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

Parameter:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Pin Dimension mm	0.8 x 0.8

300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P
