Brand Name : SCED
Model Number : TR60-01-FaM0
Certification : UL, CE
Place of Origin : Shenzhen, China
MOQ : 500
Price : Get latest price
Payment Terms : T/T
Supply Ability : 1KK poles each monthly
Delivery Time : 7-20 working days
Packaging Details : Standard Export Carton
Pitch : 14.00mm
Number Of Contacts : Any Poles Available
Rated Voltage : 600V
Rated Current : 60A
Color : Black
Wire range : 4-20 AWG
Key words : Male Pin Header
Application : Industrial Control Power supply etc.
600V 60A Din Rail Mounted Terminal Block 14.00mm Electrical Screw Terminal Blocks
High Current Terminal connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
Parameter
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 60 | 600 / 60 |
|
Wire Range AWG | 4-20 | 4-20 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /60 | 1000 / 60 | 1000 / 60 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 14 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 12-15 | ||
Screw Torque mm | M6 / 18-22 |
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:

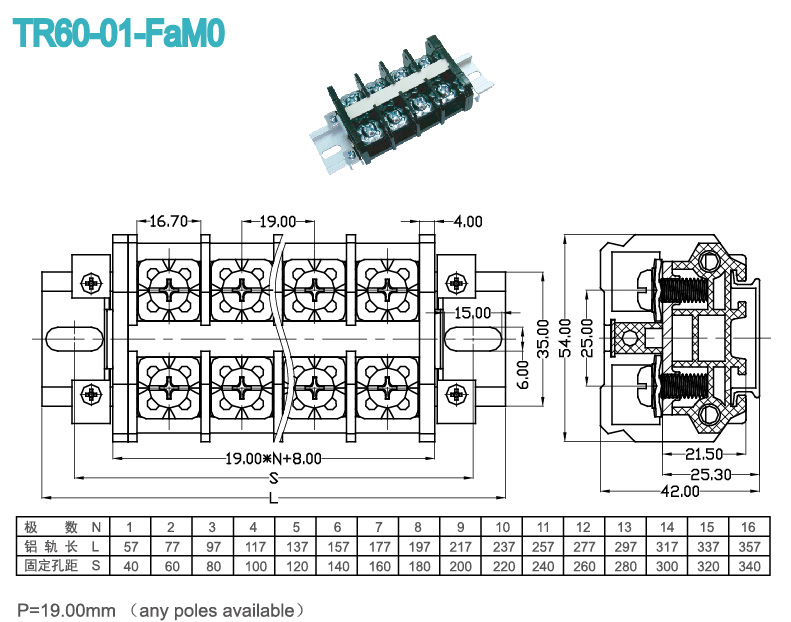

Drawing Photo
![]() |
600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks Images |
