High Current Feed Through Terminal Block Electrical , 20A Terminal Blocks

Name: High Current Feed Through Terminal Block Electrical 20A Terminal Blocks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR20-00-2P

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 9.50mm

Rated Current : 20A

Rated Voltage : 300V

Type : Feed Through Terminal Block,Feed through terminal connectors,Electrical terminal Blocks

Wire Range : 12-24

Contact Now

High Current Feed Through Terminal Block Electrical , 20A Terminal Blocks

How to order:
High Current Feed Through Terminal Block Electrical , 20A Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

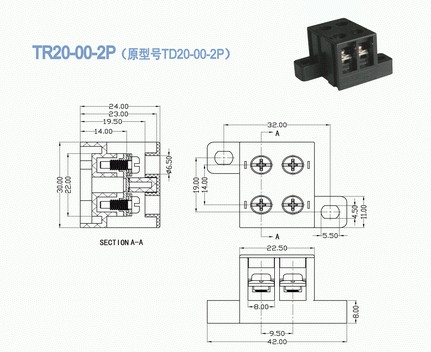

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 20	300 / 20
Wire Range AWG	12-24	12-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 20	800 / 20	1000 / 20
Rated Surge Voltage KV	6	8	8
Rated Connecting Capacity mm²	3.5
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	8-9
Screw / Torque / lbf.in	M3.5 / 7-10

High Current Feed Through Terminal Block Electrical , 20A Terminal Blocks

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
