7.62mm 300V 18A Pluggable PCB Terminal Block Connector with Header , Male Sockets , 14 Poles

Name: 762mm 300V 18A Pluggable PCB Terminal Block Connector with Header Male Sockets 14 Poles
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP508H-76VF

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Terminal Block Connector,Terminal Block Connectors, PCB Connectors

Pitch : 7.62mm

Number Of Contacts : 2P-14P

Rated Voltage : 300V

Rated Current : 18A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Level : Single Level

Contact Now

Detailed product Description:

7.62mm 300V 18A Pluggable PCB Terminal Block Connector with Header, Male Sockets , 14 Poles 2-14P

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-76F, TP508P-77F, TP508P-78F, TP508P-79F

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
7.62mm 300V 18A Pluggable PCB Terminal Block Connector with Header , Male Sockets , 14 Poles

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

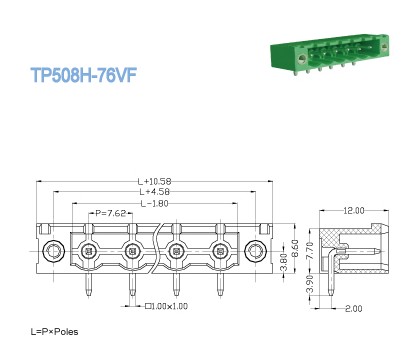

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18		300 / 18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	400 / 18	630 / 18	1000 / 18
Rated Surge Voltage KV	6	6	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	1.4
Pin Dimension mm	1.0*1.0

7.62mm 300V 18A Pluggable PCB Terminal Block Connector with Header , Male Sockets , 14 Poles

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
