24 Pin Grey Feed Through Panel Terminal Blocks Right Angle Wire Inlet

Name: 24 Pin Grey Feed Through Panel Terminal Blocks Right Angle Wire Inlet
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-95N-02F

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 100K poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : 1P-24P

Pitch : 25.00mm

Rated Current : 230A

Rated Voltage : 600V

Type : Through Panel Terminal Block,Through Wall terminal blocks, Bulkhead connectors

Wire Range : 4-4/0

Contact Now

24 Pin Grey Feed Through Panel Terminal Blocks Right Angle Wire Inlet

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
24 Pin Grey Feed Through Panel Terminal Blocks Right Angle Wire Inlet

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

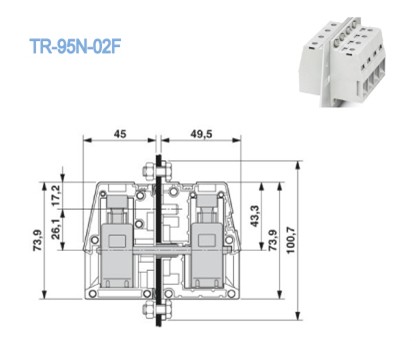

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 230		600 / 5
Wire Range AWG	4-4/0		4-4/0
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	830 / 232	1000 / 232	1000 / 232
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	95
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel / Nickel Plated
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	27
Screw / Torque / lbf.in	M8 / 132-177

24 Pin Grey Feed Through Panel Terminal Blocks Right Angle Wire Inlet

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
