7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A

Name: 762mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP508H-76

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors

Pitch : 7.62mm

Number Of Contacts : Any Poles Available

Rated Voltage : 300V

Rated Current : 18A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Wire Inlet : Vertical wire inlet

Contact Now

Pitch 7.62mm PCB Pluggable Terminal Block Connector with Male Sockets
Header, 300V 18A Plug-in Terminal Blocks

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:

7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A

Applications

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

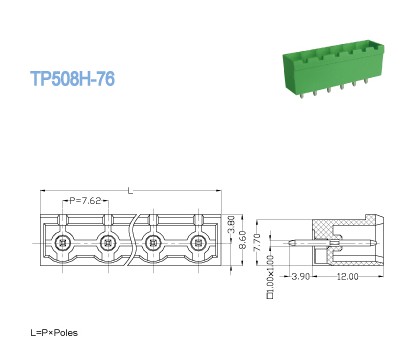

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18		300 / 18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	400 / 18	630 / 18	1000 / 18
Rated Surge Voltage KV	6	6	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	1.4
Pin Dimension mm	1.0*1.0

7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A
Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
