285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

Name: 285A Through Panel quick connect terminal block 30mm 124 Poles Grey Bulkhead Connectors
Brand: SCED
Price: 2.546 USD

China 285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors wholesale

Brand Name : SCED

Model Number : TR-150N-03F

Certification : UL,CE,CUL,CQC and VDE etc.

Place of Origin : China

MOQ : 500 Piece/Pieces

Price : USD 2.546-5.079 PER POLE

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Pitch : 30mm

Current : 285A

Poles : 1-24

Voltage : 600V

Screw : M10

Torque : 50-60 lbf.in

Insulation Material : PA66

Color : Grey

Conduction Board : Copper

Stripping Length : 26mm

Contact Now

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

Detailed product Description:

Pitch 30.0mm, 600V 285A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Decks: ■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 285
Wire Range AWG	2-300kcmil
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 309	800 / 309	1000 / 309
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	150
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel / Nickel Plated
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	26
Screw / Torque / lbf.in	M10 / 50-60

Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

2.Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

Competitive Advantage:

OEM and ODM service
10 main series and more than 1000 models for selection
Stable high quality
Competitive price
Good service

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

Product Tags:

wiring terminal block

feed through terminal blocks

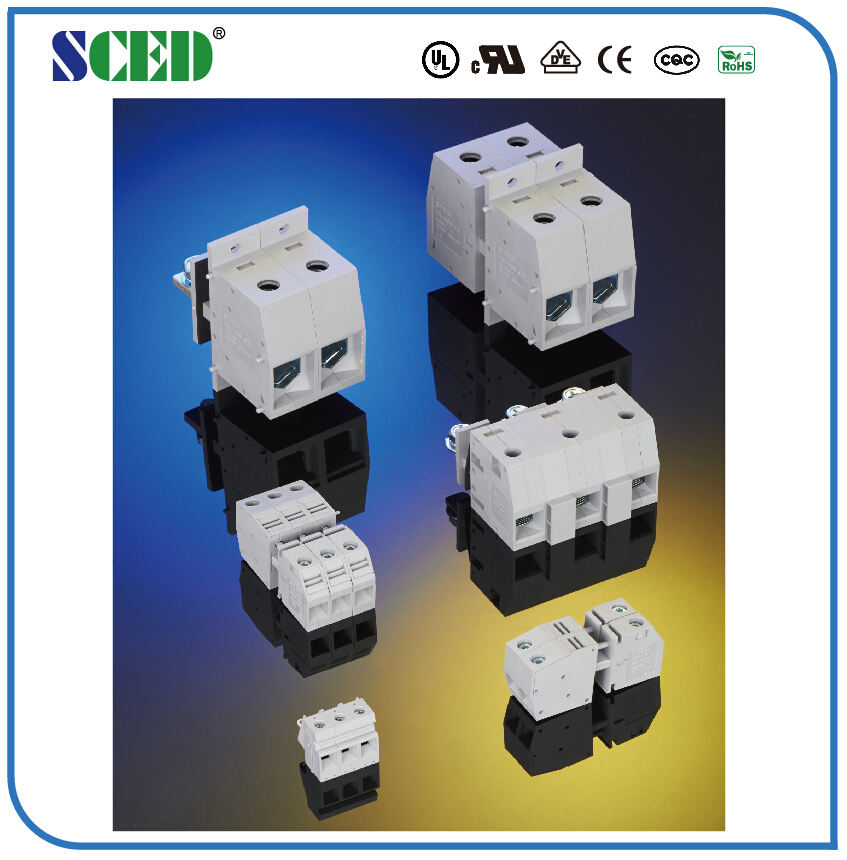

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors Images
