PCB Screw Power Terminal Blocks

Name: PCB Screw Power Terminal Blocks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ952-04-A1

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Power Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks

Pitch : 10.16mm

Number Of Contacts : 2P-16P

Wire Range : 6-22

Rated Voltage : 300V

Rated Current : 57A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Detailed product Description:

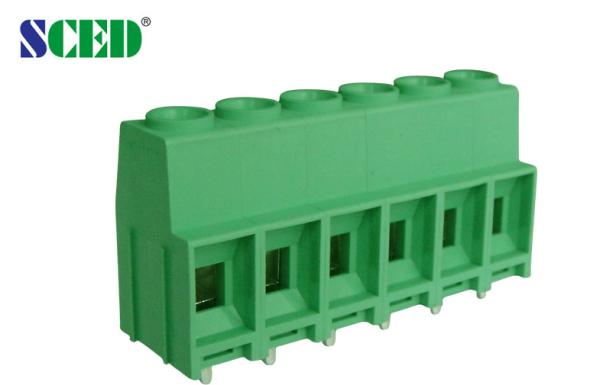

Pitch 10.16mm Power Terminal Blocks, 300V 57A 2P - 16P PCB Screw Terminal Block

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

PCB Screw Power Terminal Blocks

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

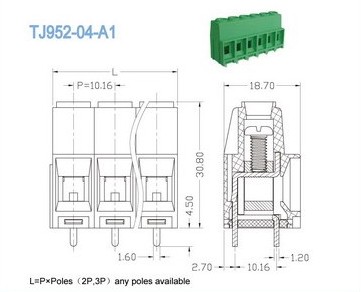

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 57	300 / 57
Wire Range AWG	6-22	6-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 57	1000 / 57	1000 / 57
Rated Surge Voltage KV	8	8	6
Rated Connecting Capacity mm²	10
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ2.2
Stripping Length mm	9-11
Screw / Torque / lbf.in	M3 / 10.6-13.0

PCB Screw Power Terminal Blocks

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
