Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch

Name: Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 1450mm Pitch
Brand: SCED
Price: 1 USD

China Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch wholesale

Brand Name : SCED

Model Number : TB1450a-07

Certification : UL,CE,CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 Working Days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Contact Material : Brass

Pole : 10 poles

Inflammability Class : UL94-V0

Insulation Grade : PA66, UL94, V0

Approvals : UL, CE, VDE

Rated Connecting Capacity : 6 mm2

Rated Voltage : 600V

Insulation : PBT

Contact Now

Nickel Plated PBT M5 Power Terminal Blocks 600V 57A With High Voltage 14.50mm Pitch

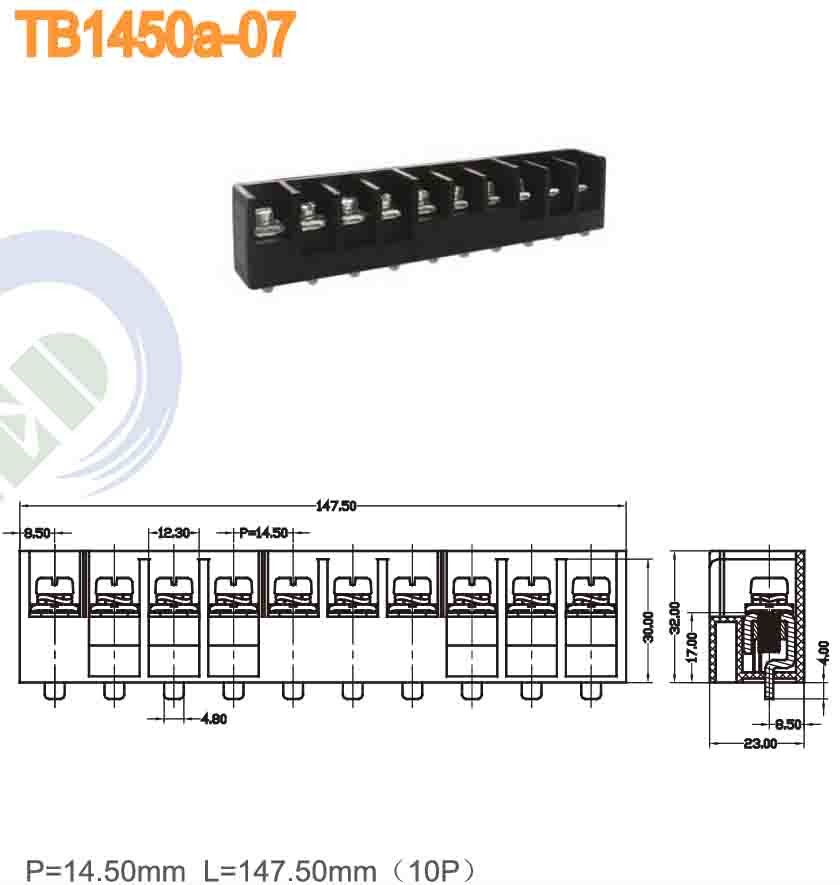

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 57	600 / 57	600 / 57
Wire Range AWG	22-6	22-6	22-6
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 57	1000 / 57	1000 / 57
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	2.4*5.2
Stripping Length mm	12-14
Screw / Torque / lbf.in	M5 / 18-20

Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch
