17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

Name: 1700mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive
Brand: SCED
Price: 1 USD

China 17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive wholesale

Brand Name : SCED

Model Number : TB1450a-06-C

Certification : UL, CE,CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Pole : 9

Voltage : 600V

Torque : 18-20 lbf.in

Operate Temperature : ﹣40°C~ ＋120°C

Pitch : 17.00mm

Terminal : Brass

Screw : M5 , Steel Ni Plated

Insulation Material : PBT

Insulation Grade : PA66, UL94,V-0

Terminal Body : Brass, Tin Plated

Contact Now

17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

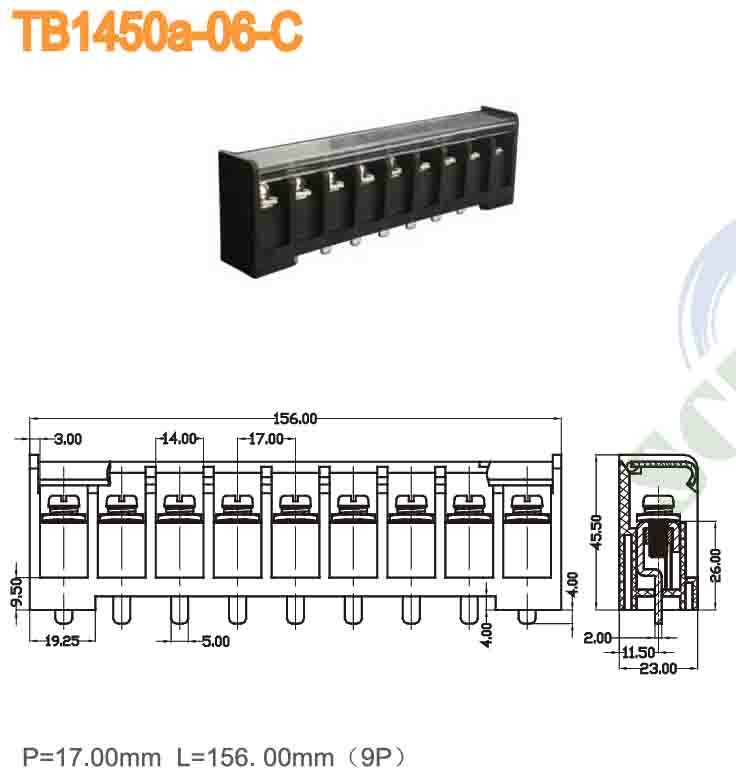

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 57	600 / 57	600 / 5
Wire Range AWG	20-6	20-6	20-6
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 57	1000 / 57	1000 / 57
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	10
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	2.4*5.4
Stripping Length mm	12-16
Screw / Torque / lbf.in	M5 / 18-20

17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
