Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw

Name: Grey 2500mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw
Brand: SCED
Price: 0.45 USD

China Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw wholesale

Brand Name : SCED

Model Number : TR-95N-03F

Certification : CE,UL,CUL, CQC and VDE etc.

Place of Origin : Suzhou, China

MOQ : 500 Piece/Pieces

Price : USD 0.45-0.92 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Terminal Width : 25.00mm

Current : 230A

Voltage : 300V

Wire Range : 4-4/0

Plastic : PA66

Inflammability Class : UL94-V0

Screw : M8

Torque : 132-177 lbf.in

Stripping Length : 27mm

Wire Inlet : Right Angle

Contact Now

Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw

Detailed product Description:

Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available.

Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

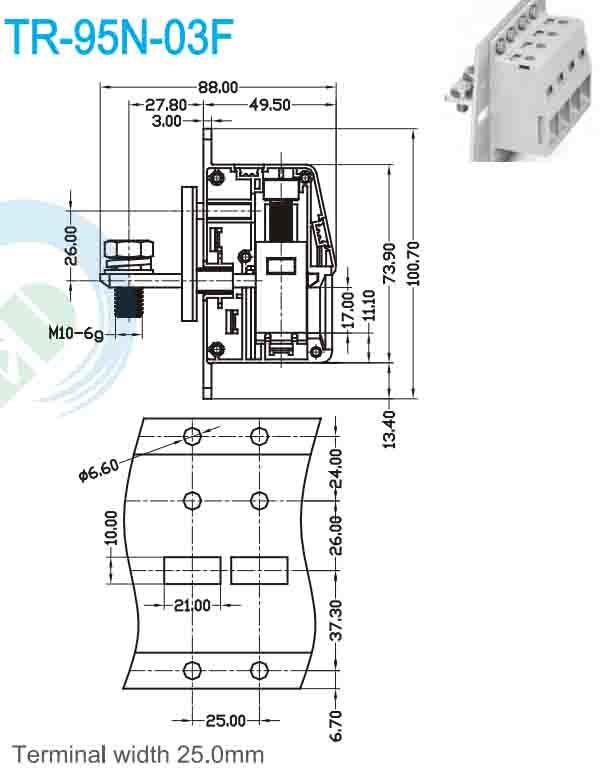

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 230		300 / 10
Wire Range AWG	4-4/0		4-4/0
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 232	800 / 232	1000 / 232
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	95
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel / Nickel Plated
Conduction Board / Plating	Copper / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	27
Screw / Torque / lbf.in	M8 / 132-177

Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand.
